Four-Way Plan of the FIAT 2000

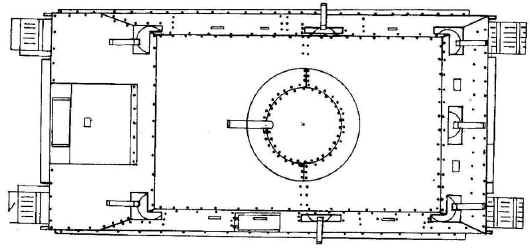

Now, with these plans kindly sent to me by Libor Matejka of Panzershop in the Czech Republic, we at last have a proper four-view plan of the Fiat 2000. Although the plans are not first rate quality-wise, they match up well with the photographic evidence. And if we combine these plans with the more exact plans of the preceding page, then I think we have reached the goal. And I can move on to the next phase, the scratch building!

(Click on the plans for the full versions.)
